Suspension Ball Joint Dorman Premium Chassis
SKU BJ69305XL
Part will fit your current fitment selection of None
Part will NOT fit your current fitment selection of None
This extended life ball joint is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.
Los sustitutos de rótula de Dorman restauran el funcionamiento y la seguridad del vehículo mediante la utilización de materiales de calidad y un control de calidad y pruebas insuperables.
Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Extended-life construction - this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
Premium corrosion resistance - WeatherShield external coating to resist corrosion
Fabricación con vida útil extendida: esta rótula está diseñada con características que permiten un desempeño suave y durabilidad extendida para conductores exigentes
Junta de rótula superior: junta ArmourGrade endurecida con rótula EverSmooth altamente pulida
Cojinete de baja fricción: caja forjada normalizada UltraFlow con grasa sintética ICE y cojinete de polímero de baja fricción
Resistencia a la corrosión superior: revestimiento externo WeatherShield para resistir la corrosión
Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
Articulación de rótula de la suspensión

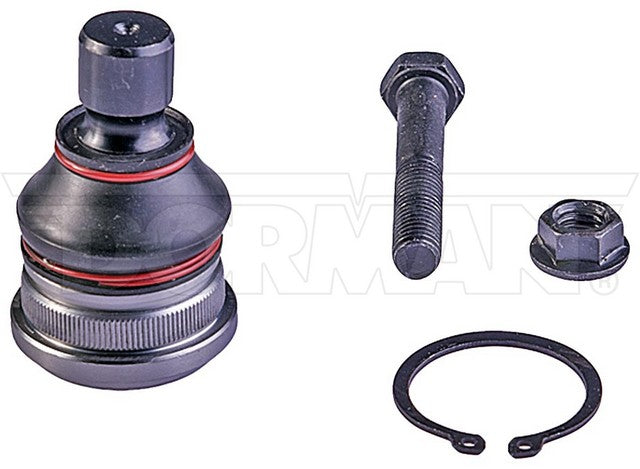

Suspension Ball Joint
| Name | Value |
|---|---|
| Bushings Included | No |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Ball Joint Installed | Yes |
| Mounting Hole Quantity | 0 |
| Mounting Type | A presión |
| Mounting Type | Press-In |
| Dust Boot Included | Oui |
| Dust Boot Included | Sí |
| Dust Boot Included | Yes |
| Type | Roscado |
| Type | Threaded |
| Stud Type | Pinchar |
| Stud Type | Pinch |
| Castle Nut Included | Non |
| Castle Nut Included | No |
| Suspension Grade Type | Premium |
| Ball Joint Assembly | Oui |
| Ball Joint Assembly | Sí |
| Ball Joint Assembly | Yes |
| Cotter Pin Included | Non |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Cotter Pin Hole | Non |
| Washers Included | Non |
| Washers Included | No |
| Nuts Included | Oui |
| Nuts Included | Sí |
| Nuts Included | Yes |
| Greaseable | No |
| Greaseable | Non |
| Dust Boot Material | Policloropreno |
| Dust Boot Material | Polychloroprene |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mounting Bolts Included | No |
| Mount Plate Included | Non |
| Mount Plate Included | No |
| Tapered Stud | Oui |
| Tapered Stud | Sí |
| Tapered Stud | Yes |
| Attachment Type | Cono |
| Attachment Type | Taper |
| Bearing Material | Polímero |
| Bearing Material | Polymer |
| Bolts/Studs Included | Oui |
| Bolts/Studs Included | Yes |
| Bushing Included | Non |
| Bushing Included | No |
| Pernos/argollas incluidos | Sí |
| Short Description | Ball Joint |
| Hazardous Material | No |
| Installs Brake Anchor Pins | 38.4 mm |
| Removal Adapters | 38.4 mm |
| Thread Pitch (Millimeter) | 1,5mm |
| Thread Pitch (Millimeter) | 1.5 mm |
| Country of Origin | Thailand |
| Weight - Each (Gross Pounds) | 1.5000 |
| Height - Each (Inch) | 2.3200 |
| Length - Each (Inch) | 6.0000 |
| Width - Each (Inch) | 3.3750 |
| Length (Millimeter) | 111 |
| Stud Thread Diameter (Millimeter) | 18 |
| Width (Millimeter) | 59 |
| Height (Millimeter) | 85.03 |
| Wrench Size (Millimeter) | 12 mm |
| Stud Tapered End 1 Diameter (Millimeter) | 27.2 |
| Stud Tapered End 2 Diameter (Millimeter) | 22 |
| Stud Thread Pitch (Millimeter) | 1.5 |
| Maximum Outside Diameter (Millimeter) | 61 |
| Stud Thread Length (Millimeter) | 35.5 |
| Stud Taper Per Foot (Inch) | 2 |
| Color | Gris |
| Color | Grey |
| Mounting Hardware Included | Oui |
| Mounting Hardware Included | Sí |
| Mounting Hardware Included | Yes |
| Grease Fitting Included | Non |
| Grease Fitting Included | No |
| Contenidos del paquete | 1 tuerca, 1 anillo de retención |
| Life Cycle Status | Available Only While Supplies Last |
| Contenidos del paquete | 1 rótula, 1 tornillo |
| Package Contents | 1 Retaining Ring |
| Item Level GTIN | 00669810707716 |
| Package Contents | 1 Nut |
| Package Contents | 1 Bolt |
| Package Contents | 1 Ball Joint |
| Material | Acero |
| Material | Steel |
| Adjustable | Non |
| Adjustable | No |
| Bushings Included | Non |
| Make | Model | Type |
|---|---|---|
| NISSAN | CUBE | Suspension Ball Joint - FRONT LOWER |
| NISSAN | JUKE | Suspension Ball Joint - FRONT LOWER |
| NISSAN | LEAF | Suspension Ball Joint - FRONT LOWER |
| NISSAN | SENTRA | Suspension Ball Joint - FRONT LOWER |
| NISSAN | TIIDA | Suspension Ball Joint - FRONT LOWER |
| NISSAN | VERSA | Suspension Ball Joint - FRONT LOWER |
